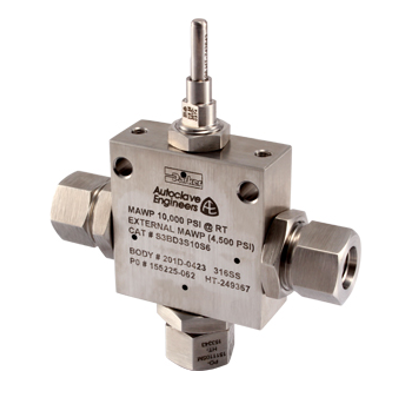

High Pressure Subsea Ball Valves
3/16
| Parker Autoclave's high pressure subsea ball valves are capable of operating to 20,000 psi (1379 bar) and depths of 12,500 feet (3810 meters), in sizes 3/16", 1/4", 3/8", and 1/2". Standard ball valves are furnished in 316 SS with specials materials available. | ||
FEATURES -One piece, trunnion mounted stem design. -Full port flow path minimizes pressure drop. -PEEK seats for excellent chemical, heat and wear resistance. -Available to NACE MR-01-75 -Manufactured from cold worked stainless steel. -Optional O-rings materials available. -Adaptable for Remote Operated Vehicle (ROV) operation. -Optional wetted materials. -Wide selection of tube and pipe end connections. BENEFITS Parker Autoclave's high-pressure ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. Our unique design innovations include an integral one-piece trunnion mounted ball and stem that eliminates the shear failure common in two piece designs, re-torqueable seat glands that result in longer seat life, and lower friction stem seal that reduces actuation torque and enhances cycle life. |
||
