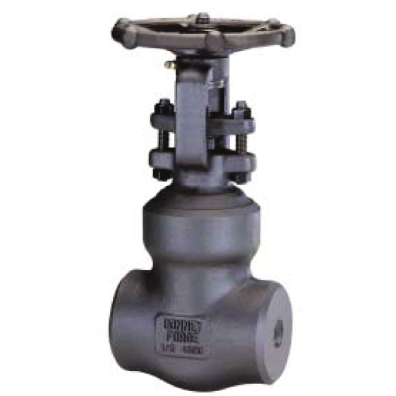

Gate Valve Welded Bonnet Full Port

2500 lb 4500lb

Design construction:

ASME B16.34
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Integral backseat
Body Bonnet Weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25

Ratings standard class:

-carbon steel class 2500 6170 psig @ 100°F

                            425 bar + 38°C

-carbon steel class 4500 11100 psig @ 100°F

                            765 bar + 38°C
